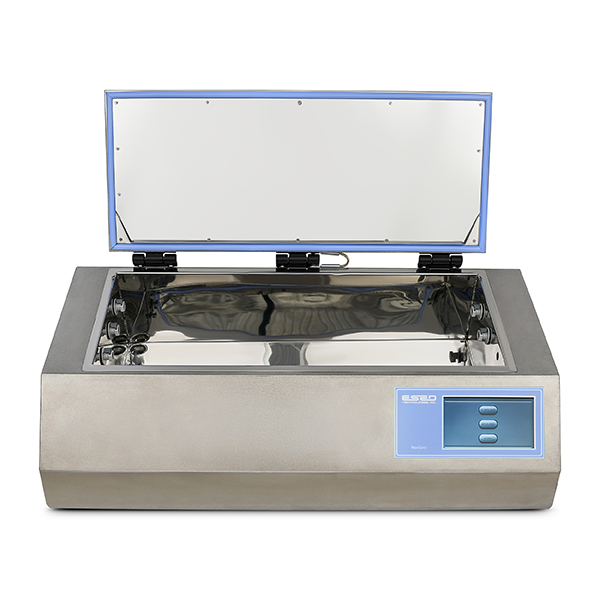

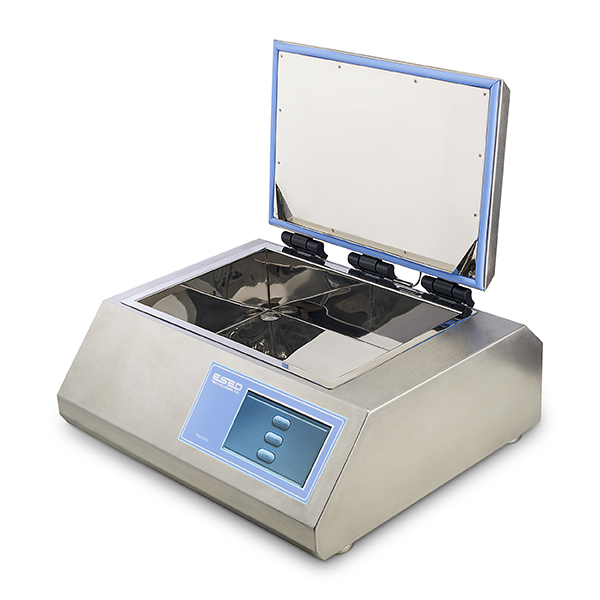

MaxiSonic XL – Sonic Irrigator

Standard Tabletop Features

• Fully automated self-fill, self-drain, self-heating, and precision chemistry dosing.
• Manual mode allows user defined operation.
• Premier Ultrasonic Power generation using Direct Digital Synthesis (DDS) Technology.
• Dither and Track Ultrasonic Washing.
• Enhanced Degassing
• Fresh Water irrigation for lumened surgical instruments or accessories.
• Thermal Sanitizing temperatures to 150⁰ F.
• Internal Process Recording for compliance using removable USB Thumb Drive.
• 316L Stainless Steel Wash Chamber
• 304 Stainless Steel Chassis
• Superbright 7″ Touch Screen control with a well-crafted and intuitive user interface.
• Programmable wash times from 1 to 30 minutes with selectable pre-wash rinse and up to two post wash rinses.
• Automatic chemistry dosing and dispensing, selectable from 0.5oz to 5.0oz per wash.
• Stainless steel braided delivery hoses, platinum cured drain hose, chemical lift filter and re-usable stainless steel drain filter all included. Flush tree for connecting multiple lumened instruments for in-wash irrigation.
• Removable Basket rack – for instrument trays with built-in
  plastic feet.
• Adjustable height feet for slanted and imperfect countertops.
• 10′ Power Cord
  18 Month All-Inclusive warranty.

Options and Accessories

• Accessory Kit Includes Extra Flush Tree for processing even more cannulated instruments, hose luers, and extra reusable stainless steel drain filters.

Specifications

Dimensions: Wash basin accepts instrument trays up to 10″x26″. Unit is 34.5″x19″x11.5″ (lid closed) and 34.5″x19″x”23″ (lid opened).

Suggested Countertop Footprint: 35″x24″x24″ (allows room for plumbing connections at rear of unit)

Ultrasonics: 16 piezoceramic transducers, driven by 350V RMS 600W DDS power supply – fractional frequency resolution. 36kHz – 40 kHz. Watts Per Gallon: 135

Electrical Connection: Standard Hospital wall outlet, 115 volt, 60 Hertz, single phase, 15A. Unit has a 10’ (3m) long electrical cord and NEMA 5-15P plug.

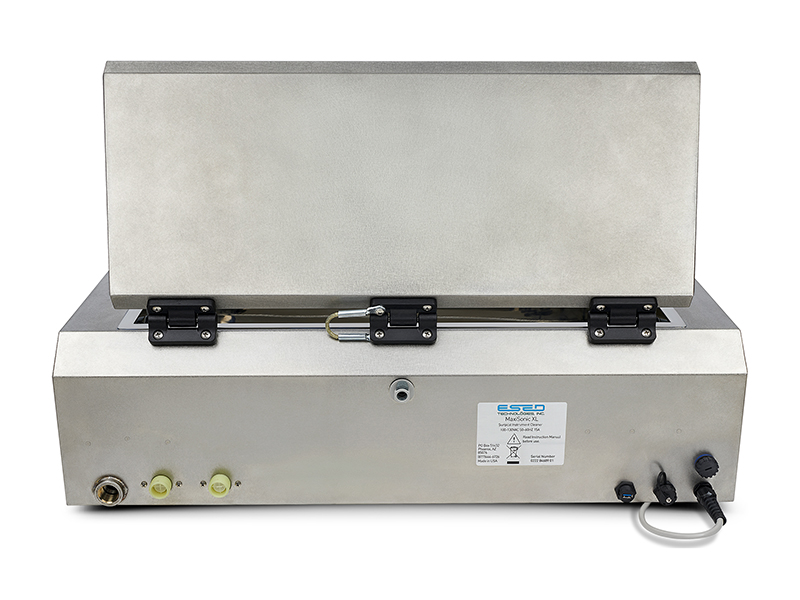

Plumbing: Dual Input 3/4″ Male GHT. Any combination of HOT, COLD, RO, or DI. Single input for primary wash and rinse, and secondary input is for dedicated lumen flush.

Traditionally, these two connections are both connected to same critical water supply (RO/DI). Only primary connection is required for automated use.

Dry Weight: TBA

Casters/Feet: Corrosion-Resistant Swivel Leveling Mount, 304 Stainless Steel with Polyurethane cushion.
